What is a Steering Column Module?
A steering column module, often referred to as the steering column assembly or combination switch, is a complex unit situated within the steering column. It consolidates essential controls and safety mechanisms, enabling drivers to interact with vehicle functions like ignition, steering lock, and frequently, lighting and wiper controls, all from a central point. This integration is paramount for ergonomic design and driver convenience.
- Integrates ignition, steering lock, and control switches.
- Enhances driver convenience and vehicle ergonomics.
- Crucial for vehicle safety and operation.
- Typically contains mechanical and electrical components.

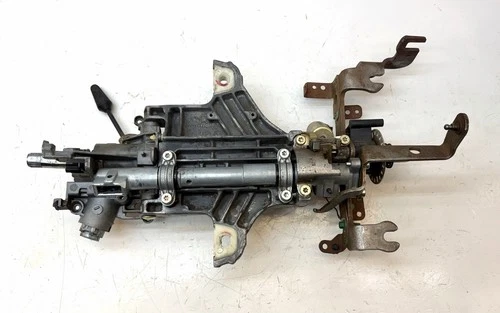

At its core, the module provides the mechanical linkage from the steering wheel to the steering rack, allowing you to direct the vehicle. Electrically, it houses switches for ignition (start, accessory, run, off), the steering wheel lock mechanism (often integrated with the ignition cylinder), and commonly, levers for turn signals, headlights, and windshield wipers. Some advanced modules may also incorporate cruise control switches or paddle shifters.
Core Components and Their Functions
The typical steering column module comprises several key elements. The ignition switch, often a rotating electrical component activated by the ignition key or push-button start, controls power distribution to various vehicle systems. The steering lock mechanism, which prevents the steering wheel from turning when the key is removed, is a critical anti-theft feature. Electrical connectors within the module route signals from the steering wheel buttons (like horn or cruise control) and to the external control stalks. The physical housing itself must be robust, ensuring alignment and durability through constant use and vibration. Understanding this mechanism is fundamental.
For enthusiasts working on classic vehicles, components like a 64 impala chrome steering column or a 1965 mustang steering column assembly might differ in complexity but serve the same primary purpose. Similarly, modern vehicles might feature sophisticated electronic modules integrated with the car's CAN bus system, making a reman steering column replacement a complex electronic task.
This mechanism is critical for safe vehicle operation.
Common Steering Column Module Issues and Symptoms
When does a steering column module start to fail? Problems typically manifest as intermittent electrical failures or complete system malfunctions. Drivers might notice the ignition key becoming difficult to turn, the steering wheel lock failing to disengage, or conversely, engaging unexpectedly. Electrical symptoms are also common: turn signals may stop working, headlights flicker, or the horn might become unresponsive. These issues often stem from worn internal electrical contacts, broken wires within the flexible harness, or failure of the ignition lock cylinder mechanism.
For instance, a common scenario on older vehicles, like troubleshooting a 73 87 chevy steering column rebuild kit, involves worn-out electrical contacts within the ignition switch or damaged detents for the steering lock. Issues on a G body steering column might present similarly.
Diagnosing a Faulty Module
Diagnosing a steering column module requires a systematic approach. Start by checking fuses and relays related to the steering column functions. If those are intact, the next step involves testing the electrical switches for continuity and voltage at the module's connectors. A multimeter is essential here. You'll need to verify power input and output to the various circuits. If the steering lock is the issue, inspect the key cylinder and the physical lock pin mechanism for obstruction or damage. For steering column go kart applications, the complexity is often reduced, but ignition and steering lock principles remain.
It is imperative to acknowledge that electrical testing requires careful attention to wiring diagrams specific to your vehicle's make and model. Incorrect diagnosis can lead to unnecessary part replacement.
The intricate interplay of mechanical and electrical components makes the steering column module a single point of failure for critical driver controls.
When testing ignition switch circuits, always disconnect the battery first to prevent short circuits and potential damage to sensitive electronics.
Sometimes, symptoms might seem unrelated. For example, a faulty turn signal switch within the module could cause dashboard warning lights to behave erratically. A remanufactured steering column module can be a cost-effective solution, but ensure it's sourced from a reputable supplier who guarantees its quality and compatibility.
Replacement and Maintenance Best Practices
What’s involved in replacing a steering column module? The process generally involves disconnecting the battery, removing the steering wheel, disabling the airbag (if applicable), and then carefully disassembling the steering column shrouds to access the module. The module itself is typically secured by screws or bolts and connected via electrical harnesses. Detaching these and carefully removing the old unit allows for the installation of the new or remanufactured part.
Essential Steps for Replacement

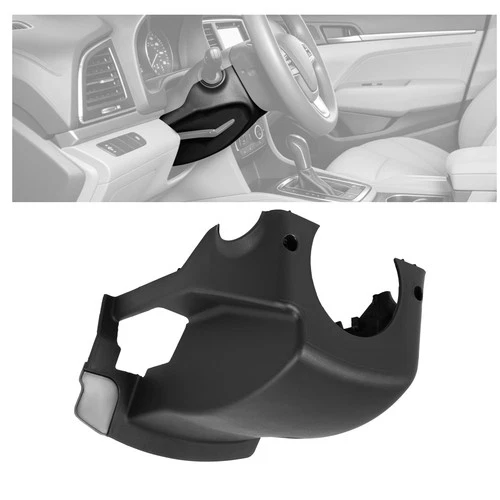

1. Disconnect the vehicle battery. Wait at least 10-15 minutes for any residual charge to dissipate, especially before touching airbag components. 2. Remove the steering wheel. This often requires a steering wheel puller and careful attention to the clock spring or airbag module. 3. Remove steering column covers and shrouds. 4. Disconnect electrical connectors leading to the module. 5. Unbolt and carefully remove the old steering column module. 6. Install the new or remanufactured module, ensuring it is properly seated. 7. Reconnect electrical connectors and reassemble the column covers. 8. Reinstall the steering wheel. 9. Reconnect the battery and test all functions, including ignition, steering lock, turn signals, horn, and wipers.
For specific applications like a 1966 mustang steering column, the process might involve more manual labor and fewer complex electronic integrations compared to a modern vehicle. The principle of careful disassembly and reassembly remains constant.
Before reinstalling the steering wheel, ensure the vehicle's front wheels are pointing straight ahead. This helps maintain the correct orientation for the steering wheel and clock spring.
Maintenance and Longevity
While steering column modules are not typically user-serviceable beyond basic switch cleaning (if accessible), their longevity can be enhanced by avoiding common abuses. Never force the ignition key or steering wheel lock. Protect the steering column area from excessive moisture or debris. Regular checks of electrical systems can help identify minor issues before they escalate into a full module failure. For specialized applications, such as a go kart steering column, maintenance might involve checking fasteners and ensuring smooth operation of the steering linkage.
Such precision is paramount when dealing with safety-critical components.
