Understanding Drum Brake Components Before Removal
Removing drum brakes requires a foundational understanding of their core components and how they interact. This system relies on a rotating drum, which encloses a backing plate. Mounted on this plate are the brake shoes, lined with friction material. When you press the brake pedal, hydraulic pressure forces a wheel cylinder to expand, pushing the brake shoes outward against the inside surface of the drum, slowing the wheel. This mechanism is critical for effective stopping power, especially in older vehicles and many trailer applications.
- Drum brakes use hydraulic pressure to expand shoes against a rotating drum.
- Key parts include the drum, backing plate, shoes, springs, and wheel cylinder.
- Proper removal prevents damage and ensures correct reassembly.
- This system is common on older cars and trailers.

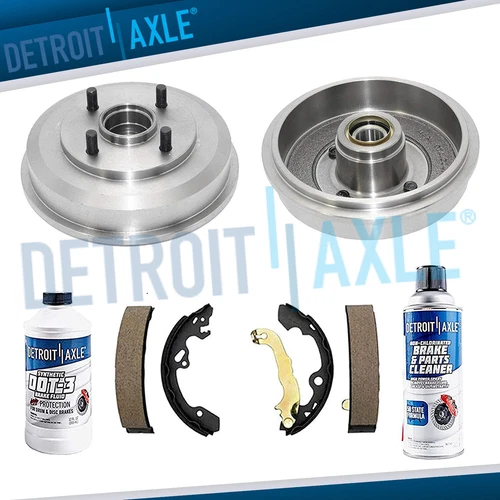

Before you begin, familiarize yourself with the arrangement of springs and clips that hold the brake shoes in place. Misunderstanding these can lead to difficulty during disassembly and reassembly. The primary components you'll encounter are the brake drum itself, the backing plate, the brake shoes (often referred to by size like 12 x 2 trailer brake shoes), return springs, hold-down clips, and the wheel cylinder. Understanding their functions is fundamental to a smooth removal process. For instance, the wheel cylinder is what actuates the shoes; its removal is often a key step.
This mechanism is critical for reliable stopping, so precision during removal is paramount.
It is imperative to acknowledge that different drum brake systems may have slight variations. For example, some systems might use different types of fasteners or retaining clips. Our analysis indicates that brands like Dexter brake shoes often use specific hardware that requires careful inspection. Always consult a service manual specific to your vehicle or trailer model if you are unsure about any component or its attachment method.
Step-by-Step Guide: How to Remove Drum Brakes
What specific challenges do you face when trying to get that stubborn drum off? Often, it’s a combination of rust and the self-adjuster mechanism that binds it. Removing drum brakes is a methodical process that, when done correctly, is quite straightforward.
Preparation and Drum Removal
First, ensure the vehicle is safely supported on jack stands, and the wheel is removed. You may need to remove a dust cap or hubcap covering the axle nut. Sometimes, a cotter pin and castle nut or a retainer clip secures the drum. If the drum is seized, you might need to gently tap it with a rubber mallet or use a specialized drum puller. Be patient; forcing it can damage the drum or other components. If your drum has a brake adjusting slot on the backing plate, you can often back off the self-adjuster using a brake spoon or flathead screwdriver to retract the shoes, freeing the drum. This step is crucial for making the drum easier to remove.
This mechanism is critical for preventing excessive wear and maintaining proper brake function over time.
Accessing Brake Shoes and Wheel Cylinder
Once the drum is off, you will see the brake shoes and the wheel cylinder. The shoes are held against the backing plate by an assembly of springs and clips. Identify the larger return springs (usually at the top) and the smaller hold-down clips or pins (typically at the bottom or sides). To remove the shoes, you’ll first need to unhook the return springs. This often requires brake spring pliers. Be aware that these springs can be under significant tension. After the return springs are disconnected, you can release the hold-down clips and carefully lift the shoes off the backing plate. Note the orientation of the shoes and any associated hardware, as this is vital for proper reassembly. Some systems, like those using 4710 brake shoes, may have specific clip designs.
Our analysis indicates that proper documentation, like taking photos during disassembly, drastically reduces reassembly errors.
Removing the Wheel Cylinder
The wheel cylinder is typically held in place by two bolts or nuts accessed from the back of the backing plate, or it might be retained by the brake shoes themselves in some designs. If it's bolted, remove the brake lines carefully—expect some residual brake fluid to drip out. If the wheel cylinder is corroded or leaking, it's often best to replace it. Our focus here is removal, but for effective maintenance, understanding this component's role is key. If you're working on a trailer, learning how to adjust drum brakes on a trailer might also involve understanding how the wheel cylinder interacts with the shoes.
Capture brake fluid in a clean container to prevent environmental contamination and potential damage to painted surfaces.
Such precision is paramount for safety.
Common Issues and Best Practices for Drum Brake Removal
Why do so many DIYers struggle with this task? The most common culprits are rust, seized components, and a lack of understanding of the spring mechanisms. Forcing parts can lead to damage, turning a simple repair into a costly one.
Troubleshooting Seized Drums and Components
Rust is the number one enemy. If the drum is rusted to the hub or backing plate, penetrating oil applied generously around the hub and stud areas can help. Gentle tapping with a rubber mallet on the drum's face, or even strategically on the backing plate tabs (if accessible), can break the rust bond. Avoid using a hammer directly on the drum, as it can warp or crack. If the self-adjuster is frozen, you may need to spray lubricant into the adjuster hole and work the brake spoon back and forth. For railroad brake shoes or heavy-duty trailer brakes, components are often larger and more robust, but the principles remain similar, though requiring more leverage.
The primary consideration involves preventing damage to the backing plate and wheel cylinder. Our experience shows that specialized tools often pay for themselves quickly.
Reassembly Tips and Safety Precautions
When reassembling, ensure all parts are clean and free of rust. Lubricate the backing plate contact points for the shoes and the wheel cylinder contact points lightly with brake grease. Install the shoes correctly, making sure they pivot freely. The return springs must be fully seated, and the hold-down clips securely fastened. Properly installing dual master cylinder systems for drum brakes requires careful attention to fluid lines, ensuring no kinks or cross-connections. It is imperative to acknowledge that correct reassembly is as critical as removal. Always torque axle nuts to manufacturer specifications after reinstalling the wheel. If you've used wheel spacers on drum brakes, ensure they are also installed correctly and securely.
Verify that the brake shoes sit flush against the backing plate and that the wheel cylinder pistons retract fully before reinstalling the drum.
Understanding this principle is fundamental to a safe and effective braking system.
