What is a Master Cylinder Brake?
The master cylinder brake is the primary component in your vehicle's hydraulic braking system. It converts the mechanical force you apply to the brake pedal into hydraulic pressure, pushing brake fluid through the lines to the wheels. This mechanism is critical for initiating the stopping process safely and effectively.
- Converts pedal force into hydraulic pressure.
- Essential for all hydraulic brake systems.
- Directly influences braking performance.
- Failure leads to significant braking loss.
When you press the brake pedal, a piston inside the master cylinder moves, forcing brake fluid from the reservoir into the brake lines. This pressurized fluid then actuates the brake calipers or wheel cylinders, which apply friction to the rotors or drums to slow the vehicle. Without a functioning master cylinder, your brakes simply will not work.
It's imperative to acknowledge that the master cylinder's internal seals are vital. These seals prevent fluid from bypassing the piston, which would result in a spongy pedal and reduced braking power. Modern master cylinders often incorporate residual pressure valves to maintain a slight pressure in the lines, keeping brake pads/shoes seated against rotors/drums.
Consider the complexity for specialized applications; a go kart brake master cylinder operates on the same principle but is scaled down. Similarly, a master cylinder brake motorcycle side requires precise calibration for safety on two wheels.
Core Components and Function

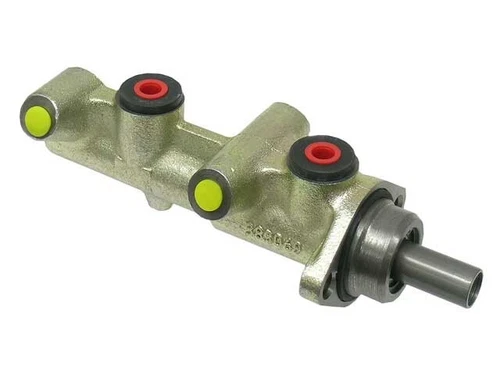

A typical master cylinder has one or two reservoirs holding brake fluid, connected to cylinders containing pistons. As the pedal is pushed, the piston(s) create hydraulic pressure. In dual-circuit systems (standard on modern cars for safety), two separate circuits are powered by a single master cylinder. If one circuit fails, the other can still provide some braking capability, a crucial safety feature.
This dual-circuit design ensures that even with a leak in one part of the system, you don't lose all braking power. The primary consideration involves maintaining adequate fluid levels and system integrity.
Signs Your Master Cylinder Needs Attention
How do you know if your master cylinder is failing? Several tell-tale signs indicate it's time for a closer look, often before complete brake failure occurs. Recognizing these symptoms early can prevent dangerous situations and costly secondary damage.
A soft or spongy brake pedal is perhaps the most common symptom. This feeling means air may have entered the hydraulic system, or internal seals are leaking, allowing fluid to bypass the piston. The pedal might feel like it sinks to the floor under pressure, requiring you to pump it to achieve adequate braking. This mechanism is critical for driver confidence.
Another indicator is a consistently low brake fluid level. While minor evaporation can occur over long periods, a significant drop usually points to a leak, either externally or internally within the master cylinder itself. You might also notice brake fluid puddles under your vehicle, especially near the firewall where the master cylinder mounts.
Warning lights on the dashboard are your vehicle's way of shouting for help.
Troubleshooting Common Master Cylinder Issues
When diagnosing a master cylinder, mechanics check for leaks, pedal feel, and fluid levels. A visual inspection can reveal external leaks around the seals or the reservoir. Internal leaks are harder to spot but often manifest as a slow pedal drop or a spongy feel.
For older vehicles or those experiencing issues, sometimes a specific part is the culprit. For example, a midland brake booster rebuild kit might address issues related to the brake booster, which works in tandem with the master cylinder, but the master cylinder itself could still need service or replacement. If the brake booster is removed entirely, a brake booster delete is required, and the master cylinder must be compatible.
Understanding the interplay is key; for instance, a 12v electric vacuum pump power brake booster aims to provide consistent vacuum assist, complementing the master cylinder's hydraulic function. If that pump fails, it impacts brake assist, not necessarily the master cylinder directly, but the symptoms can be confused.
Inspect brake fluid color and condition regularly; dark, murky fluid can indicate contamination or internal wear, potentially damaging master cylinder seals.
Beyond standard passenger cars, specific applications demand attention. A master cylinder brake motorcycle side requires meticulous maintenance due to the critical nature of its function. Similarly, a surge brake master cylinder on a trailer has unique requirements.
Master Cylinder Maintenance and Replacement
Proper maintenance of your master cylinder brake is crucial for longevity and safety. The most fundamental maintenance task is regularly checking and topping off the brake fluid reservoir with the correct type of fluid specified by your vehicle manufacturer.
Brake fluid is hygroscopic, meaning it absorbs moisture from the atmosphere over time. This absorbed water can lower the fluid's boiling point, leading to brake fade under heavy use, and can also cause internal corrosion within the brake system components, including the master cylinder. This is why periodic brake fluid flushes and replacements are recommended—typically every two to three years.
When considering upgrades or replacements, you'll find options like a chrome brake booster and master cylinder for aesthetic appeal, alongside performance-oriented units. The choice between a standard replacement and an upgraded unit depends on your vehicle, driving habits, and budget. For classic vehicles, such as a 1965 mustang power brake booster setup, ensuring compatibility with the original or an upgraded master cylinder is paramount.
This mechanism is critical for maintaining safe stopping distances.
When to Replace
Replacement is necessary if the master cylinder shows signs of significant internal or external leaks, if the pedal feel is irrecoverably spongy, or if it fails diagnostic tests. A common scenario involves a failing seal, leading to fluid bypass and a loss of braking ability. If this happens, the entire unit is typically replaced, as rebuilding kits are not always available or practical for DIY repairs, especially for modern, complex units.
It is imperative to acknowledge that the cost of a new master cylinder can range from under $100 for basic models to several hundred dollars for high-performance or specialized units. Installation labor adds to this cost. If you're comfortable with automotive repairs, replacing a master cylinder can be a feasible DIY project, but it requires careful attention to bleeding the brake system afterward to remove all air.
Always bleed the brake system thoroughly after replacing the master cylinder to ensure no air is trapped, which would compromise braking performance.
For those concerned about vacuum assist, an electric brake booster vacuum pump can be an alternative or supplement to traditional vacuum sources, but it does not replace the master cylinder's primary function. The master cylinder remains the indispensable heart of the hydraulic braking system.
