Understanding Brake Lines and Their Installation
Installing brake lines correctly is fundamental to maintaining a safe and functional braking system. This process involves replacing old, potentially corroded or damaged lines with new ones, ensuring hydraulic fluid can flow efficiently to the brake calipers or wheel cylinders. A proper installation guarantees optimal stopping power.
- Replace worn brake lines promptly for safety.
- New lines ensure proper hydraulic fluid flow.
- Correct installation is vital for braking performance.
- Requires specific tools and careful technique.
Brake lines are the conduits that carry hydraulic fluid from the master cylinder to the braking mechanisms at each wheel. Over time, these lines can degrade due to rust, physical damage, or age, leading to leaks, reduced braking effectiveness, or complete brake failure. Understanding the principles behind their function is key to a successful installation. The primary consideration involves ensuring a leak-free connection at every point.
Essential Components and Terminology

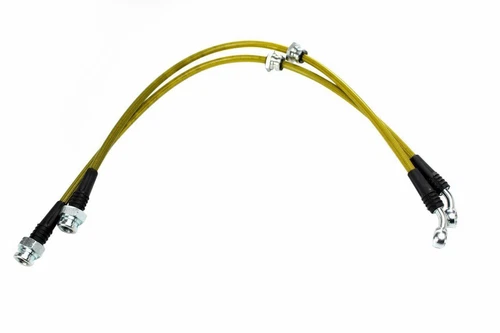

Before diving into the installation, it's important to familiarize yourself with the key components involved. These include the brake lines themselves (typically made of steel, copper-nickel alloy, or braided stainless steel), fittings (like double-flare fittings, banjo bolts), adapters, and the necessary tools for bending, flaring, and tightening. Understanding terms like 'flaring' (creating a sealable end on the line) and 'bleeding' (removing air from the system) is also paramount.
Our analysis indicates that the correct replacement lines must match the original specifications in length, diameter, and fitting type to ensure compatibility and performance. For instance, fitting specific vehicles like a 3rd gen 4runner front brake lines upper or e46 m3 rear brake lines requires precise part numbers.
It is imperative to acknowledge that incorrect installation can lead to dangerous situations, compromising your vehicle's ability to stop effectively. This is not a task to be rushed or approached without proper preparation.
The Step-by-Step Process for Installing New Brake Lines
What are the core steps to install brake lines?
Embarking on a brake line installation requires a systematic approach to ensure accuracy and safety. You'll first need to gather your tools and new parts, disconnect the old lines carefully, and then route and connect the new ones. This process demands precision to avoid leaks and ensure proper function. Such precision is paramount.
Preparation and Safety First
Before you begin, ensure the vehicle is safely supported on jack stands and the wheels are removed. Wear safety glasses and gloves. Identify the sections of brake line that need replacement. For example, if you're working on 1968 Fairlane master cylinder brake lines, you'll need to trace the path from the master cylinder to the proportioning valve and then to the front or rear hard lines.
Disconnecting Old Lines
Carefully loosen the fittings connecting the old brake line. Use the correct size flare nut wrenches to avoid rounding off the fittings. If a fitting is stubborn, a penetrating lubricant may help. Be prepared for some residual brake fluid to escape; have a catch pan ready. Disconnect the line from its origin and trace it to its endpoint, noting its routing path.
Routing and Fitting New Lines

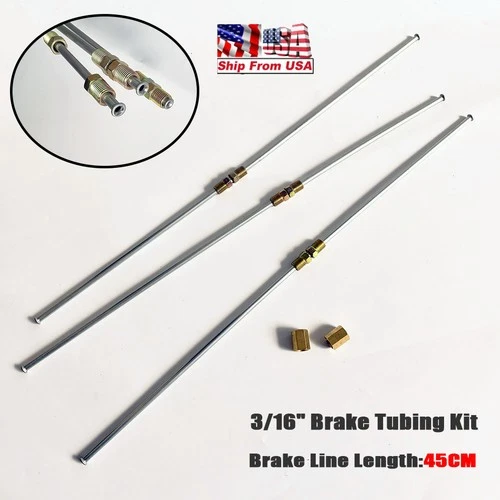

The new brake lines should be routed exactly as the old ones were. This prevents kinks or chafing. If you're fabricating custom lines, you'll need to bend them carefully using a tubing bender. Then, you must 'flare' the ends to create a secure seal. This typically involves using a flaring tool to form a double-flare, which is standard for most automotive brake lines. Compression fittings for brake lines are generally not recommended for the main hydraulic system due to their tendency to loosen under vibration and pressure changes, though they may see use in some trailer applications, such as boat trailer brake lines.
Connecting and Testing
Once the new line is in place, connect it to the existing system using appropriate fittings. Hand-tighten first, then use a flare nut wrench to snug them up. Do not overtighten, as this can damage the fittings or the line end. After all lines are connected, the system must be bled to remove any air. This is a critical step that ensures the brake pedal feels firm and responsive.
Pro Tip: Always use a quality flare nut wrench set; the six-point design grips fasteners better than standard wrenches, significantly reducing the risk of stripping fittings, especially on older or corroded components.
This mechanism is critical for ensuring your braking system performs as designed.
Common Challenges and Best Practices for Brake Line Installation
What are common issues when installing brake lines?
Even with careful planning, installing brake lines can present challenges. Understanding these common pitfalls and adopting best practices can save you time, frustration, and most importantly, ensure your safety. Have you ever experienced a stubborn fitting or a line that just won't route correctly? These are common occurrences.
Stubborn Fittings and Corrosion
Corrosion is the enemy of brake line fittings. If you're working with older vehicles, especially those exposed to road salt, fittings can become seized. Applying penetrating oil and allowing it time to work is essential. Sometimes, a gentle tapping with a hammer on the wrench can help break the corrosion bond. If a fitting absolutely won't budge, carefully cutting the old line may be necessary, followed by removing the fitting with pliers or a pipe wrench.
Flaring and Bending Techniques
Achieving a perfect flare, especially a double-flare, takes practice. An improperly flared end will not seal, leading to leaks. Similarly, bending lines too sharply can create stress points or restrict fluid flow. A dedicated tubing bender is indispensable for clean, accurate bends. For specialized applications like Harley Davidson brake lines or tacoma extended brake lines, specific lengths and routing may require custom fabrication, making good flaring and bending skills vital.
Brake Fluid Leaks and Air in the System
The most critical post-installation step is bleeding the brakes. If you installed new brake lines, chances are air has entered the hydraulic system. Air is compressible, meaning your brake pedal will feel spongy or go straight to the floor if not fully purged. Bleeding is typically done by one person pumping the brake pedal while another opens and closes the bleeder screw at each wheel. This process must be repeated until no air bubbles are seen exiting the bleeder valve.
Leak Testing and Final Checks
After bleeding, a thorough leak test is non-negotiable. With the system pressurized (by pumping the pedal), visually inspect every connection point for even the slightest drip of brake fluid. Check all flares, banjo bolt connections, and where the line meets hard lines. If any leaks are found, the fitting must be tightened slightly, or the flare redone.
A brake system is only as strong as its weakest line and connection.
Our experts often point out that patience is the most underrated tool in a mechanic's arsenal, particularly when dealing with brake systems.
Pro Tip: When bleeding brakes, always use fresh, specified brake fluid. Old or contaminated fluid can damage seals within the master cylinder and calipers/wheel cylinders, negating your hard work.
