Understanding Ford Differential Codes: Your Key to Drivetrain Specs
Decoding Ford differential codes is crucial for anyone looking to understand or modify their vehicle's drivetrain. These alphanumeric sequences, often found stamped on the axle housing or a metal tag, reveal vital information about your vehicle's rear axle, including its gear ratio and type of differential. Identifying the correct code ensures you select compatible parts for maintenance or upgrades, preventing costly mistakes and ensuring optimal performance. For instance, a common Ford axle code could indicate a specific gear ratio needed for towing or fuel economy.
- Differential codes specify gear ratio, axle type, and traction features.
- Codes are found stamped on the axle housing or a metal tag.
- Correct identification is vital for parts compatibility and performance.
- These codes are fundamental for maintenance and modification decisions.

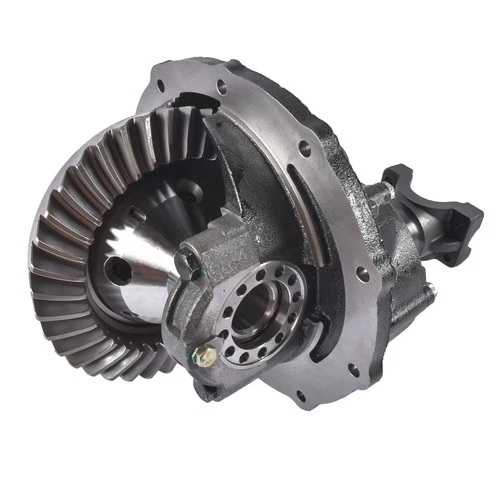

The differential itself is a complex set of gears that allows your vehicle's wheels to rotate at different speeds when turning, preventing tire scrub and improving handling. Without a differential, your truck or SUV would struggle to navigate corners, putting immense strain on the drivetrain. Understanding the specific differential codes on your Ford helps you pinpoint its capabilities and limitations, whether it's equipped with a standard open differential, a limited-slip differential (LSD), or a locking differential.
Why is this so important? Suppose you're looking to upgrade your towing capacity or improve off-road traction. Knowing your current differential code is the first step to selecting the right components. For example, if your Ford F-150 has a code indicating a 3.73 gear ratio, and you want better acceleration, you'll need to find another axle with a numerically higher ratio, ensuring the new differential is compatible.
Key Differential Code Components
Ford differential codes are typically a combination of letters and numbers. The primary components they denote are:
- Gear Ratio: This is the numerical relationship between the driveshaft's rotation and the wheel's rotation (e.g., 3.55, 4.10). A higher numerical ratio generally means better acceleration but lower top-end speed and potentially reduced fuel economy.
- Axle Type: Indicates whether the axle is standard, limited-slip, or locking.
- Differential Housing Size: Often denoted by specific codes, indicating the strength and capacity of the housing (e.g., Dana 44, Ford 8.8).
- Traction Control Features: Some codes may implicitly include information about electronic or mechanical traction aids.
The primary consideration involves accurately reading and interpreting these codes to match your vehicle's needs.
It is imperative to acknowledge that code variations exist across different Ford models and production years. Always verify the code with your vehicle's specific documentation or consult a differential mechanic near you for definitive identification.
Comprehensive Ford Differential Codes List & Interpretation
Navigating the world of Ford axle codes can seem daunting, but a structured approach simplifies identification. This list covers common codes found on Ford trucks and SUVs, providing a foundation for understanding your vehicle's specifications. Remember, these are common examples, and variations may exist. For instance, many 2020 Polaris Ranger 1000 front differential rebuild kits target specific OEM codes.
Common Ford Rear Axle Codes (Examples):
| Code | Axle Ratio | Differential Type | Notes |
|---|---|---|---|
| 26 | 3.08 | Open | Common for V6/smaller V8 |
| 27 | 3.27 | Open | |
| 31 | 3.55 | Open | Often for towing |
| 32 | 3.31 | Open | |
| 33 | 3.73 | Open | Good balance |
| 34 | 4.10 | Open | Heavy duty, off-road |
| 35 | 3.55 | Limited Slip | Towing, performance |
| 36 | 3.31 | Limited Slip | |
| 37 | 3.73 | Limited Slip | Performance LSD |
| 41 | 3.73 | Locking | Off-road, traction |
| 42 | 4.56 | Open | Heavy duty, extreme |
| 44 | 3.55 | Locking | |
| L4 | 3.31 | Limited Slip | Late model |
| L5 | 3.55 | Limited Slip | Late model |
| L6 | 3.73 | Limited Slip | Late model |
| 46 | 3.55 | Ford 8.8" IRS | Explorer, Bronco |
| 47 | 3.73 | Ford 8.8" IRS | Explorer, Bronco |
For front differentials, the codes are often integrated with the rear axle information or specific to the model. For example, understanding what is the front differential on your 4x4 F-150 means checking codes related to its engagement system and gear ratio, which should match the rear axle's numerical ratio for optimal performance. Trucks like the 2022 Tacoma TRD Pro might use specific differential drop kit configurations, highlighting the need for model-specific code interpretation.
Interpreting Codes for Specific Components
When you encounter a Dana 35 differential cover or a Dana 80 differential cover, the numbers stamped on the housing itself often refer to the differential model, not necessarily the gear ratio or axle code that Ford assigns. The Ford axle code is the definitive reference for the ratio and type installed from the factory. For example, while a Dana 80 is a heavy-duty axle housing, the Ford code on the tag will tell you if it's configured with a 3.73, 4.10, or other ratio.
Always cross-reference the axle tag code with your owner's manual or a reliable online Ford VIN decoder to confirm its meaning for your specific vehicle year and model.
A common mistake is confusing the differential housing manufacturer's stamping with the vehicle manufacturer's axle code.
Front Differential Codes:
Front differentials in 4x4 or AWD Ford vehicles are typically geared to match the rear differential's ratio to ensure proper operation of the four-wheel-drive system. While specific codes for front differentials are less common on tags, the ratio is critical. If your rear axle is coded '31' (3.55 open), your front axle must also have a 3.55 ratio. This uniformity prevents drivetrain binding and premature wear. The 2022 Tacoma differential drop kit is an example of a modification that addresses potential issues with front differential angles, especially when lifting the vehicle.
Our analysis indicates that precise matching of front and rear gear ratios is fundamental for 4WD longevity.
Practical Applications and Maintenance Tips
Knowing your Ford differential codes isn't just for parts shopping; it's integral to vehicle maintenance and performance optimization. Understanding what is differential service entails, for instance, becomes much clearer when you know the specific type of gears and fluid your axle requires. Using the wrong fluid can lead to accelerated wear, particularly in limited-slip or locking differentials.
If you're performing a differential service, always use the manufacturer-recommended fluid type and viscosity, often specified in your owner's manual or on the axle tag itself. For limited-slip differentials, a friction modifier additive is typically required, and it’s crucial to use a fluid that either contains it or to add it separately as instructed.
This mechanism is critical for ensuring smooth power delivery.
Troubleshooting Common Differential Issues
Differential codes can indirectly help diagnose issues. For example, if you have a code indicating a heavy-duty axle ratio (e.g., 4.10) and you frequently tow, but experience poor performance or overheating, it might suggest an underlying problem with the differential's internal components or lubrication. Issues like whining noises, clunking sounds, or vibrations can often be traced back to worn gears, low fluid levels, or damaged seals.
The primary consideration involves listening for unusual noises during turns or acceleration, which are often early indicators of trouble. A differential mechanic near you can perform inspections, fluid changes, and repairs.
Identifying the correct differential code is the first step in any successful repair or upgrade, ensuring your vehicle performs as intended.
When changing differential fluid, inspect the old fluid for metal shavings; excessive amounts could indicate internal damage requiring immediate professional attention.
For those considering modifications, such as fitting a different gear ratio for larger tires or improved towing, understanding your current code is paramount. For example, if your Ford F-250 has a code for 3.73 gears and you install 37-inch tires without changing the gears, your truck will feel significantly slower and work harder. Conversely, changing to a numerically higher ratio (e.g., 4.56) might be necessary for optimal performance with larger tires. This principle applies whether you're in Brampton looking for a truck differential specialist or anywhere else.
