What is Double Control Arm Suspension?
A double control arm suspension system, often referred to as a double wishbone setup, uses two (upper and lower) A-shaped or wishbone-shaped arms to pivot the wheel assembly. This arrangement precisely dictates the wheel's movement and alignment during suspension travel, offering significant advantages over simpler designs. Understanding this mechanism is fundamental for appreciating advanced vehicle dynamics.
- Precise wheel movement control.
- Uses two wishbone-shaped arms.
- Enhances handling and stability.
- Common in performance vehicles.
Core Principles and Mechanics
The primary function of any suspension is to manage wheel movement relative to the chassis, absorbing road imperfections while maintaining tire contact. In a double control arm setup, the upper and lower control arms work in tandem. Their angled pivot points ensure that as the wheel moves up and down, its camber angle (the tilt of the wheel relative to vertical) and caster angle (the tilt of the steering axis) are precisely controlled. This controlled geometry is key to consistent tire contact and predictable steering response, which is paramount for performance driving.
Essential Components and Their Functions

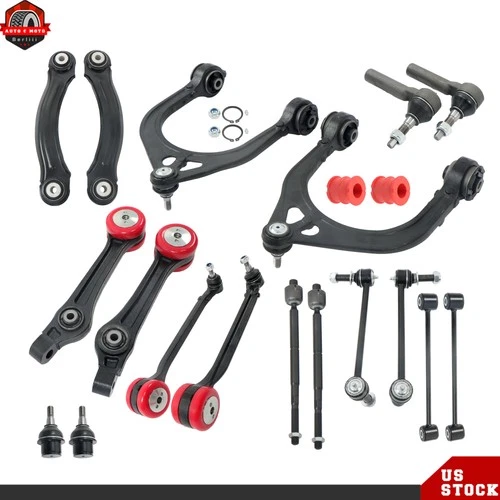

At its heart, this system features the upper control arm, the lower control arm, and the steering knuckle (or spindle) connecting them. The control arms are typically forged or stamped metal, pivoting from the vehicle's frame at one end and connecting to the knuckle at the other via ball joints. The upper arm is generally shorter than the lower one, influencing camber gain. Bushings isolate vibration and allow for controlled flex at pivot points. Specialized applications, like those seen on a 2021 Polaris Ranger XP 1000 Northstar Ultimate, might feature specific a-arm bushings for enhanced durability and performance in demanding terrain.
Such precision is paramount.
Why Choose Double Control Arm Suspension?
Key Benefits for Performance and Handling
The principal advantage of a double control arm suspension lies in its ability to maintain optimal tire alignment throughout the suspension's travel cycle. Unlike simpler MacPherson strut systems, which see significant camber changes as the suspension compresses, a double wishbone design can be engineered to minimize these undesirable shifts. This results in a larger, more consistent contact patch between the tire and the road, directly translating to superior grip during cornering, improved braking stability, and more predictable steering feel. For enthusiasts seeking responsive handling, this is a critical feature.
This mechanism is critical for delivering a connected driving experience.
Practical Applications and Usage Scenarios
You'll commonly find double control arm suspensions on performance cars, sports cars, and many luxury vehicles where handling dynamics are prioritized. It’s also a popular choice for off-road vehicles, including many trucks and SUVs like the Ford F-150 and various generations of the Toyota 4Runner. For instance, while the 3rd Gen 4Runner might benefit from specific aftermarket upgrades like lower control arm bumpers or even upper and lower control arm bumpers to protect crucial components, the inherent design of its double wishbone front suspension provides a robust and capable platform.
The ability to precisely manage wheel geometry is what sets double control arm suspension apart.
Even compact performance cars, such as the Mazda 3, utilize this setup to achieve a balance of ride comfort and agile handling. For Jeep XJ owners looking to improve off-road articulation and alignment control, upgrading Jeep XJ upper control arm bushings is a common modification to enhance the effectiveness of their existing suspension architecture.
Inspect your control arm bushings regularly for signs of cracking or excessive play, as worn bushings are a common source of noise and alignment issues.
Maintenance and Common Issues
Essential Maintenance Practices
Proper maintenance of a double control arm suspension primarily involves regular inspection of pivot points, bushings, and ball joints. Greasing fittings, if present, should be serviced according to the manufacturer's schedule. It is imperative to acknowledge that wear and tear are inevitable, especially in demanding environments. For owners of vintage or performance-oriented vehicles, such as a KP61 Starlet, ensuring the control arm mounts are free from rust and damage is vital for maintaining structural integrity and suspension performance.
This careful attention prevents costly failures.
Troubleshooting Common Problems
Several issues can arise with this type of suspension. A common symptom is clunking or rattling noises, often originating from worn ball joints or deteriorated bushings. If you notice uneven tire wear, it typically signals an alignment problem, which could stem from bent control arms or worn components affecting geometry. Steering that feels vague or inconsistent, especially when cornering, can also indicate issues with the upper or lower control arm components. If your vehicle exhibits these signs, prompt diagnosis is essential.
Consider adjustable upper control arms when lifting a vehicle, as they allow for precise alignment correction to compensate for suspension geometry changes.
The primary consideration involves maintaining the integrity of these connection points.
