What is the Differential Ring and Pinion?
The differential ring and pinion set is a crucial gear pair within your vehicle's axle housing that transmits engine power to the wheels. It converts the driveshaft's rotational energy and changes its direction by 90 degrees, allowing the wheels to rotate at different speeds when turning.
- Converts driveshaft rotation 90 degrees.
- Allows wheels to spin at different speeds.
- Essential for smooth cornering and traction.
- Key components are the ring gear and pinion gear.
This fundamental mechanism is critical for efficient vehicle operation. The pinion gear, driven by the driveshaft, meshes with the larger ring gear, which is connected to the axle shafts. This gear reduction amplifies torque, providing the necessary force to move the vehicle, while the differential housing itself allows for the speed variation between the left and right wheels.
Core Components and Their Roles

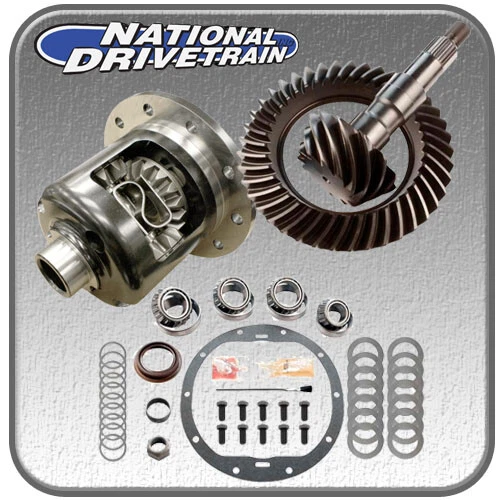

The system comprises two primary components: the pinion gear and the ring gear. The pinion is a smaller bevel gear directly attached to the end of the driveshaft via a companion flange. Its teeth are angled to mesh precisely with the ring gear. The ring gear is a significantly larger, toothed wheel bolted to the differential case. It carries the output torque to the axle shafts. The precise ratio between the number of teeth on these gears determines the vehicle's final drive ratio, impacting acceleration and top speed.
Understanding this principle is fundamental to appreciating how torque is managed. When you steer, the outer wheel needs to travel a longer distance than the inner wheel. The differential's internal gears, driven by the ring gear, facilitate this by allowing the axle shafts to rotate independently, preventing tire scrub and drivetrain strain.
How the Differential Ring and Pinion Works
Imagine your vehicle approaching a curve. Without a differential, both wheels would be forced to rotate at the same speed, leading to tire slippage, jerky handling, and undue stress on the axle components. The differential ring and pinion set, as part of the larger differential assembly, solves this.
When the driveshaft spins the pinion gear, it turns the ring gear. The ring gear is bolted to the differential carrier, which houses spider gears and side gears. These internal differential gears are what allow for speed differences. As the ring gear rotates, it drives the spider gears, which in turn rotate the side gears attached to the axle shafts. If the vehicle drives straight, all gears rotate as one unit. During a turn, the spider gears pivot, allowing one side gear (and thus one wheel) to spin faster than the other, while maintaining overall torque distribution.
The differential ring and pinion is the unsung hero that allows your vehicle to navigate turns smoothly, directly translating engine power into controlled wheel motion.
Ensure proper gear oil viscosity and level; using the wrong type can lead to premature wear on the differential ring and pinion, especially under heavy load.
This mechanism is critical for vehicle maneuverability and tire longevity. The ratio between the pinion and ring gear, known as the final drive ratio, is set during manufacturing and is vital for matching the engine's power band to the vehicle's intended use, whether for fuel efficiency or acceleration. For example, a higher numerical ratio (e.g., 4.10:1) means the pinion turns more times for each rotation of the ring gear, providing more torque for acceleration but lower top speed.
Maintenance and Common Issues
What common problems arise with the differential ring and pinion?
The most frequent issues stem from lubrication failure, contamination, or improper gear meshing. Worn or damaged teeth on either the ring or pinion gear can cause whining noises that change with vehicle speed, clunking sounds during acceleration or deceleration, or even complete gear failure. Metal shavings in the differential fluid are a strong indicator of internal wear and necessitate immediate inspection. Such precision is paramount for drivetrain longevity.
Preventative Maintenance Best Practices
Regular differential service is paramount. This includes changing the differential fluid at manufacturer-recommended intervals or more frequently if the vehicle operates in dusty or extreme conditions. The fluid lubricates, cools, and cleans the gears. Inspecting the differential cover, like a dana 35 differential cover or a dana 80 differential cover, for leaks or damage during service is also wise. For performance vehicles or those used for towing, consider specialized synthetic gear oils designed to withstand higher temperatures and pressures.
Listen for unusual noises from the rear or front differential; a consistent whine or clunk can signal early-stage wear on the ring and pinion, allowing for repair before catastrophic failure.
If you're experiencing issues like a 2020 Polaris Ranger 1000 front differential rebuild kit requirement or are considering a 2022 Tacoma differential drop kit for lifted vehicles, it highlights the importance of specialized components. Understanding what is the front differential's role and how it functions with its ring and pinion set is key to addressing these specific needs. Finding a competent differential mechanic near you is essential for accurate diagnosis and repair.
It is imperative to acknowledge that the lifespan of your differential ring and pinion depends heavily on driving habits and maintenance. Rough handling, aggressive acceleration, and lack of proper lubrication are primary culprits behind premature wear. Performing what is differential service correctly ensures these vital components continue to function optimally.
