What is a Differential Magnet and How Does It Work?
A differential magnet is a critical, yet often overlooked, component designed to magnetically attract and capture ferrous metal particles suspended in the lubricating fluid of a differential, transfer case, or transmission. By employing a powerful magnet, typically within a drain plug, it acts as a proactive defense against abrasive wear, safeguarding the intricate gears and bearings within the drivetrain.
- Captures ferrous metal particles in drivetrain fluid.
- Prevents abrasive wear on gears and bearings.
- Typically integrated into drain plugs for easy access.
- Extends the lifespan of transmission and differential components.
Understanding the fundamental principle behind a differential magnet is straightforward: it leverages the force of magnetism to isolate harmful contaminants. As gears mesh and bearings rotate under load, microscopic particles of metal can shear off. Without a magnetic capture system, these particles would circulate freely within the lubricant, acting like liquid sandpaper. The magnet intercepts these particles before they can cause significant damage.
The Core Mechanism: Magnetic Attraction
The primary function relies on the attraction between the magnet's poles and ferromagnetic materials. Most internal components of a drivetrain – gears, bearings, and shafts – are made from steel alloys, which are inherently magnetic. When these components experience friction or wear, tiny fragments break away. These fragments, now suspended in the differential fluid, are drawn towards the powerful magnet. This action effectively removes them from circulation, preventing them from being recirculated and causing further damage.
Common Integration: The Magnetic Drain Plug
While standalone magnetic filters exist, the most common application for a differential magnet is its integration into a differential drain plug. This design offers a dual benefit: it allows for fluid draining and provides a convenient point for magnetic debris collection. When performing routine maintenance, the technician can easily inspect the plug for accumulated metal particles, gaining valuable insight into the internal health of the differential. The presence of excessive metal shavings can indicate abnormal wear or an impending failure, signaling the need for immediate attention.
This simple yet effective design is paramount for proactive maintenance.
Key Components Protected
The differential magnet's primary role is to protect the delicate and expensive components within the drivetrain. This includes:
- Gears: Ring gears, pinion gears, and spider gears are constantly meshing. Metal particles can get lodged between teeth, causing scoring and premature wear.
- Bearings: Differential and wheel bearings are precision-engineered. Abrasive particles can pit their races and damage the rolling elements, leading to noise and failure.
- Shafts: Axle shafts and pinion shafts can also be affected by circulating debris, especially at their bearing contact points.
The effectiveness of a differential magnet in capturing these particles is a testament to its importance in maintaining drivetrain integrity and longevity.
Inspect your differential drain plug for metallic debris during every fluid change; a small amount of fine dust is normal, but larger shavings indicate a serious issue.
Practical Applications and Benefits of Using a Differential Magnet
What is the front differential on your vehicle doing when it's subjected to heavy loads or rough terrain? It's working hard, and so are the lubricants keeping it cool and protected. Implementing a differential magnet is a practical strategy to enhance this protection, offering tangible benefits across various vehicle types.
Enhanced Drivetrain Longevity
The most significant benefit of a differential magnet is its direct contribution to extending the operational life of your drivetrain components. By continuously removing abrasive metal particles, it minimizes wear and tear. This means gears remain sharper, bearings run smoother, and seals are less likely to be compromised by microscopic debris. Consequently, you can expect fewer premature failures and a longer service life from your differential, transfer case, or transmission.
Early Warning System for Wear
The visual inspection of a magnetic drain plug serves as an invaluable diagnostic tool. A clean plug after a fluid change is a good sign, indicating normal operation. However, the presence of significant metallic sludge or large shavings can act as an early warning. This insight allows you to address potential issues, such as abnormal gear wear or bearing damage, before they escalate into catastrophic failures. This proactive approach can save you substantial repair costs and unexpected downtime. For example, a 2020 Polaris Ranger 1000 front differential rebuild kit might be avoided with timely inspection and maintenance.
The continuous capture of microscopic wear particles is the hallmark of a well-protected drivetrain.
Protection in Demanding Environments
Vehicles used for towing, off-roading, or high-performance driving subject their drivetrains to extreme stress. Under these conditions, wear rates can increase. A differential magnet is particularly beneficial in these scenarios. It provides an extra layer of defense against the accelerated particle generation that can occur during heavy use. Whether it's a truck differential in Brampton dealing with harsh winters or an off-road vehicle tackling challenging trails, the magnetic capture system plays a vital role.
Cost-Effectiveness and Simplicity
Compared to the cost of repairing or replacing a damaged differential, the addition of a magnetic drain plug is incredibly cost-effective. It's a simple upgrade that requires no complex installation and offers continuous protection. For owners performing their own maintenance, it's an essential tool. For those using a differential mechanic near me, it’s a feature they often recommend as standard practice. It represents excellent value for money in preventing far more expensive problems down the line.
This simple upgrade is a cornerstone of smart vehicle ownership.
Specific Use Cases
The utility of differential magnets extends to a wide array of vehicles:

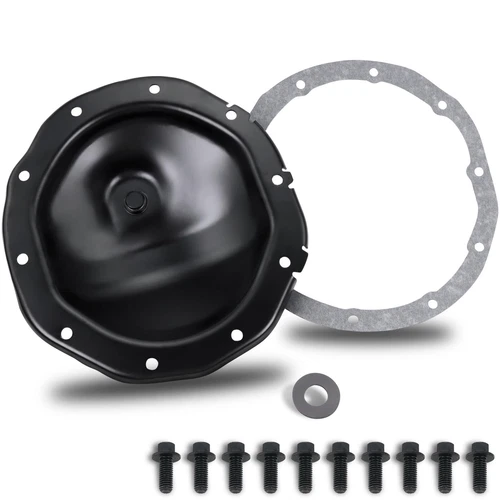

- Heavy Duty Trucks: Protecting differentials like the Dana 80 differential cover and its internal components.
- Performance Cars: Ensuring the integrity of high-stress transmissions and differentials.
- Off-Road Vehicles: Safeguarding against increased wear from dust and impacts.
- Commercial Fleets: Minimizing downtime and maintenance costs across multiple vehicles.
Maintenance, Common Issues, and Advanced Considerations
How often should you service your differential, and what signs indicate a problem that a differential magnet might help mitigate? Routine checks and understanding potential issues are key to leveraging this protective component effectively. While the magnet itself is robust, its effectiveness relies on proper maintenance and awareness of related drivetrain health.
Routine Inspection and Fluid Service
The primary maintenance task related to a differential magnet is its inspection during routine differential fluid changes. The frequency of these changes depends on the vehicle manufacturer's recommendations, driving conditions, and the type of fluid used. For many vehicles, inspecting the magnetic drain plug every 30,000 to 60,000 miles, or annually, is a good practice. When removing the plug, wipe off any accumulated metal particles. If you find only a fine, paste-like residue, it generally indicates normal wear. However, if you encounter significant metal shavings, chunks, or a gritty texture, it's a clear sign of excessive wear or an internal component failure.
When inspecting the magnetic drain plug, always re-torque it to the manufacturer's specification after cleaning to prevent leaks.
Common Issues and Troubleshooting
The differential magnet itself is unlikely to fail, but its presence can highlight other issues:
- Excessive Metal Debris: As mentioned, this is the primary indicator of a problem. It could stem from worn gears, failing bearings, or even a damaged axle shaft. The solution involves diagnosing the source of the debris and repairing or replacing the affected component.
- Leaking Drain Plug: A worn or damaged drain plug gasket can cause leaks. While not directly a magnet issue, it's critical for maintaining proper fluid levels, which is essential for the magnet's environment.
- Weak Magnetism (Rare): Over extreme periods or in exceptionally high-heat environments, a magnet's strength could theoretically diminish. However, this is exceedingly rare for automotive-grade magnets used in differentials.
It is imperative to acknowledge that the magnet is a diagnostic aid and a passive protector, not a repair solution.
When to Consider Upgrades
For vehicles that experience heavy use, such as towing, racing, or extreme off-roading, a standard magnetic drain plug might be sufficient, but further enhancements can be considered. Some high-performance applications might benefit from aftermarket magnetic drain plugs with stronger neodymium magnets, or even dedicated magnetic filter systems installed inline with the differential's lubrication circuit. For example, a 2022 Tacoma TRD Pro differential drop kit might be installed, and ensuring the differential is protected with robust magnetic filtration is a wise complement.
Beyond the Magnet: What is Differential Service?
While a differential magnet captures particles, comprehensive differential service involves more. It typically includes draining and replacing the old gear oil, inspecting for wear, checking for leaks, and ensuring proper gear backlash and bearing preload. This holistic approach, combined with the constant protection offered by a differential magnet, ensures optimal drivetrain performance and longevity. Understanding what differential service entails highlights the magnet's role as a crucial component of a larger maintenance strategy.
