Understanding Differential Lockers: The Basics

A differential locker forces both wheels on an axle to rotate at the same speed, overriding the standard differential's function. This ensures maximum traction by preventing one wheel from spinning freely when encountering slippery surfaces. It’s a critical system for vehicles venturing off-road or in challenging conditions.

  • Lockers mechanically link both axle shafts.
  • They prevent wheel slip by equalizing rotational speed.
  • Crucial for regaining traction in low-grip situations.
  • Overriding the standard differential is its main purpose.

To grasp how a differential locker works, first understand the open differential it typically modifies or replaces. An open differential allows wheels to spin at different speeds, essential for smooth cornering. However, when one wheel loses traction, it spins uselessly while the other, with grip, receives little power. This is where a locker becomes indispensable.

How Standard Differentials Limit Traction

The primary function of a standard differential is to split engine torque between two drive wheels, allowing them to rotate at different speeds during turns. This is achieved via a set of gears within the differential housing. When one wheel encounters a loss of grip, like ice or mud, it begins to spin faster. The open differential, by design, directs most of the available torque to the path of least resistance—the spinning wheel. Consequently, the wheel with traction might not receive enough power to move the vehicle.

This mechanism is critical for maneuverability on paved surfaces but becomes a significant limitation off-road. For instance, if your vehicle is on a trail with one wheel in the air or in deep mud, an open differential will send all power to that unloaded or stuck wheel, leaving you immobile.

Our analysis indicates that understanding this torque distribution is fundamental to appreciating the locker’s advantage.

→ Differential Explained: Understanding Its Core Function

Types and Engagement Mechanisms

Differential lockers come in several varieties, broadly categorized by their engagement method. Automatic lockers engage when torque is applied and wheels differ in speed, disengaging during gentle turns. Selectable lockers, like air lockers or electric lockers, require driver intervention via a switch or button. This allows you to engage the locker only when needed, preserving on-road manners. Rebuild kits for specific differentials, such as a 2020 Polaris Ranger 1000 front differential rebuild kit for sale, are available for maintenance.

Manual lockers are a simpler, often mechanical, design that permanently locks the differential until manually disengaged. This provides maximum traction but severely compromises steering and tire wear on high-grip surfaces. The specific components involved, from the dana 35 differential cover to the internal locking gears, are designed for durability under stress.

It is imperative to acknowledge the trade-offs: lockers enhance off-road capability at the expense of on-road handling and driveline wear.

The Mechanics of Locking Up

What happens when you engage a differential locker? The core principle is to bypass the differential's gearing and create a direct, solid connection between the two axle shafts. This forces both wheels to rotate at precisely the same speed, regardless of surface conditions.

Consider a scenario where your truck's right-side wheels are on pavement and the left-side wheels are in deep mud. Without a locker, the left wheels would spin uselessly. With a locker engaged, both left and right wheels receive equal torque and spin at the same rate, allowing the vehicle to drive forward using the traction available to the tires on the pavement.

Always engage your differential locker *before* you encounter a situation where you need it, especially with automatic or selectable types. Waiting until a wheel is already spinning is often too late.

→ Largest Super Bowl Score Differential: 45 Points of Dominance

How the Locking Action Physically Occurs

The exact mechanism varies. In a manually selectable locker (e.g., air or electric), a mechanism like a collar or a set of pins is physically moved into place to physically connect the differential's side gears to its housing or output shaft. This effectively locks the two half-shafts together. Air lockers use compressed air, while electric lockers use a small motor to actuate this mechanism.

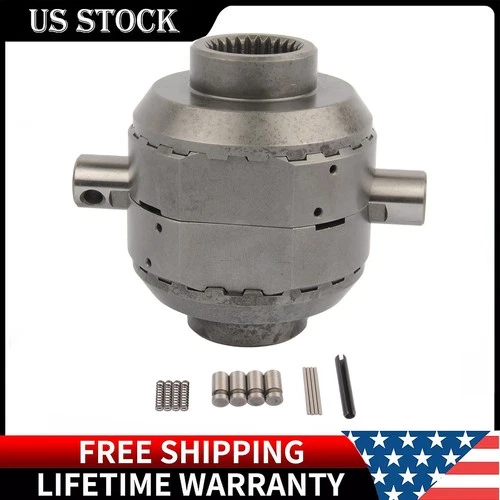

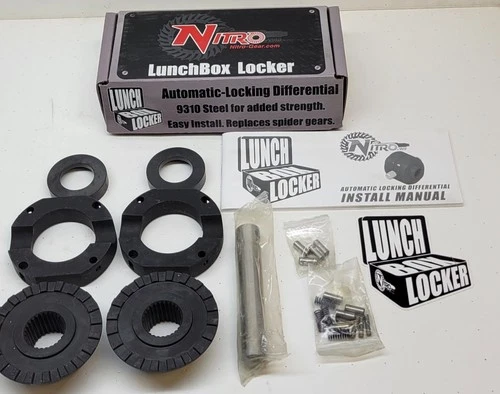

Automatic lockers, often called "lunchbox" lockers, use spring-loaded wedges or cam systems that engage when there's a speed difference and torque applied. They automatically disengage when speed differences reduce or torque is removed, offering a convenient, albeit less controllable, solution.

Understanding this principle is fundamental to appreciating the direct power transfer achieved.

When to Use Your Locker

You should engage your differential locker whenever you anticipate losing traction, such as when approaching steep, loose ascents, deep mud, sand, snow, or extreme articulation where one or more wheels might lift off the ground. This includes navigating rocky terrain where uneven surfaces are common. For example, if you are planning a difficult off-road excursion, it's wise to consult a differential mechanic near you for a pre-trip inspection and to confirm your system is ready.

On the other hand, it's imperative to disengage the locker when driving on dry pavement or any high-grip surface. Driving with a locked differential on pavement causes excessive tire wear, puts immense stress on the axle components, and makes steering difficult and unpredictable. The need for a 2022 Tacoma TRD Pro differential drop kit, for instance, is unrelated to locker function but highlights other differential system considerations.

Practical Applications and Maintenance

Differential lockers are not just for extreme rock crawlers; they offer significant benefits in many scenarios where traction is compromised. From utility vehicles like the Polaris Ranger to heavy-duty trucks needing to navigate challenging job sites, the ability to lock differentials provides a crucial advantage.

→ Ford 8.8 Differential Cover: 5 Facts for Owners

For serious off-roaders, a locker in the front differential, alongside one in the rear, provides exceptional four-wheel-drive capability. This setup ensures that power is delivered to all four wheels, even when multiple wheels are struggling for grip. It’s a proactive measure that prevents situations where you might otherwise need a truck differential Brampton specialist.

Perform regular differential service, especially after heavy off-road use, to ensure your locker and the surrounding components remain in optimal condition. Check fluid levels and look for any signs of leaks around the differential cover.

Maximizing Traction in Specific Scenarios

In muddy conditions, a locked differential ensures both wheels on an axle push forward equally, helping you power through soft ground rather than digging a deeper hole. On steep, slippery inclines, it prevents the dreaded situation where one wheel spins, halting your progress. For overlanders or workers in remote areas, reliable traction is not just about convenience; it's about capability and safety. Understanding what is differential service entails can help prolong the life of these vital systems.

Consider the added stress: a locked differential means both wheels are fighting for grip, so ensuring the integrity of components like a Dana 80 differential cover is vital for protection.

The true value of a differential locker lies in its ability to transform a vehicle from being stuck to being unstoppable, provided it's used correctly.

Maintenance and Potential Issues

Regular maintenance is key. This involves checking and changing differential fluid at recommended intervals, especially after submersion in water or mud. Inspecting the differential for leaks around the housing and axle seals is also important. Such precision is paramount for the longevity and reliable function of the locking mechanism.

Common issues can include a locker that fails to engage or disengage properly, or one that makes excessive noise. These symptoms might point to issues with the actuating mechanism (air lines, electrical connections, vacuum hoses) or internal wear. If you experience problems, consulting a specialist who understands systems like the 2022 Tacoma differential drop kit for alignment and other differential complexities is advisable.
