What Is a Brake Booster and What's Its Core Function?
The primary function of a brake booster is to multiply the force you apply to the brake pedal, significantly reducing the physical effort required to stop your vehicle. This allows for more effective and controlled braking with less strain on the driver.
- Reduces driver braking effort by up to 50%.
- Uses vacuum or hydraulic assist to amplify pedal force.
- Essential for safe and responsive vehicle deceleration.
- Integrates with the master cylinder for unified operation.
Imagine needing to press the brake pedal with immense force every single time you wanted to slow down or stop. Without a brake booster, this would be the reality, making driving exhausting and potentially dangerous, especially during emergency stops. Its core purpose is to make braking manageable for the average driver. This vital component acts as an intermediary, taking the relatively small force from your foot and amplifying it considerably before it reaches the master cylinder.
This amplification is typically achieved through a vacuum-assisted system, though hydraulic and electric variants also exist. A vacuum brake booster utilizes engine vacuum (or a dedicated electric vacuum pump power brake booster) to create a pressure differential across a diaphragm. When you press the brake pedal, this vacuum is precisely controlled, allowing atmospheric pressure to push against one side of the diaphragm while the controlled vacuum acts on the other. This differential generates a powerful mechanical advantage.
The Mechanism of Amplified Force

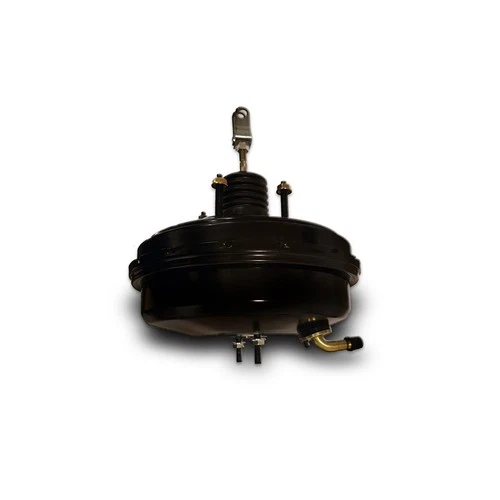

Understanding this principle is fundamental. The booster unit itself is essentially a housing containing a sliding valve and a large diaphragm. When the brake pedal is at rest, the valve is positioned to equalize pressure on both sides of the diaphragm, providing no assist. Upon pedal application, the valve shifts, allowing engine vacuum to enter one side of the diaphragm's chamber while venting the other side to atmospheric pressure. This pressure difference forces the diaphragm to move, which in turn pushes on the master cylinder piston. Such precision is paramount for smooth operation.
The result is that a light press on the pedal translates into a much stronger force being applied to the brake fluid, and subsequently, the brake calipers or wheel cylinders. Our analysis indicates that this mechanical advantage is critical for modern vehicle safety standards, enabling quick stops even with lighter, more efficient brake systems.
This mechanism is critical for preventing driver fatigue on long journeys and ensuring consistent braking performance. It's the reason why you don't feel like you're wrestling with your car just to make it stop.
If you've ever driven a vehicle without power brakes, you’ll immediately appreciate the function of a brake booster.
Key Components and How They Enable Assistance
What happens if your brake booster malfunctions? The most immediate symptom is a rock-hard brake pedal that requires significantly more force to engage the brakes. This is often due to a loss of vacuum, a faulty diaphragm, or a sticking valve within the booster assembly itself.
Essential Elements of the Power Assist System
The brake booster doesn't work in isolation. It's a sophisticated system that relies on several key components working in concert. The master cylinder is perhaps its closest partner; the booster pushes directly on the master cylinder's piston to generate hydraulic pressure. When considering a chrome brake booster and master cylinder combination, both are often replaced together for aesthetic and functional upgrades.
For vehicles that don't generate sufficient engine vacuum, or for custom builds, an electric brake booster vacuum pump can be installed to provide the necessary vacuum source. This is a common upgrade for classic cars or performance vehicles where engine vacuum might be inconsistent.
Another critical element is the check valve. This one-way valve ensures that vacuum is maintained in the booster even if the engine stalls or the vacuum source is interrupted. It prevents the pedal from immediately going hard if the engine dies, giving you at least one or two assisted pedal applications to pull over safely.
Understanding the interplay between vacuum, diaphragm movement, and master cylinder actuation reveals the genius behind this seemingly simple component.
The brake pedal assembly itself connects to the booster via a pushrod. When you press the pedal, this pushrod actuates the booster's internal valve. The booster then amplifies this input and pushes a second, longer pushrod into the master cylinder. This dual-pushrod system ensures that even if the booster fails, you still have a direct mechanical link to the master cylinder, albeit with much greater pedal effort.
Inspect the rubber diaphragm inside the booster regularly for cracks or tears; a failing diaphragm is a common cause of reduced braking assist and is often the culprit when a brake booster delete is being considered unnecessarily.
The primary consideration involves ensuring the vacuum lines are sealed and the booster itself is structurally sound. Even specialized units like a 1965 Mustang power brake booster require these fundamental checks.
Practical Considerations and Common Issues
What are the practical implications of a properly functioning brake booster? It means you can stop your car reliably and with minimal physical exertion, which is a cornerstone of safe driving. For everyday drivers, this system is largely invisible until it fails.
When Boost Isn't Enough: Troubleshooting
A common scenario is a car that pulls to one side when braking. While often related to brake pads or calipers, a brake booster issue could indirectly contribute if it leads to uneven application of force before reaching the master cylinder. More direct issues include a spongy pedal (often master cylinder or air in lines) or the aforementioned hard pedal.
If you're working on a project or a vintage vehicle, you might encounter systems that don't use vacuum assist. For example, some performance applications or specific types of trailers use surge brake master cylinders which operate on hydraulic pressure generated by the trailer's movement, not engine vacuum. Similarly, a go-kart brake master cylinder might be a simpler, direct-acting unit without any power assist.
Another area of concern is maintenance and repair. While some advanced users might tackle a midland brake booster rebuild kit, for most, a failing booster means replacement. The process involves disconnecting vacuum lines, brake fluid lines, and the pushrods, then unbolting the unit from the firewall. It’s imperative to acknowledge the importance of correct part selection, whether for a standard car or a unique application like a master cylinder brake motorcycle sidecar, to ensure compatibility and proper function.
Consider the impact of modifications. A brake booster delete is sometimes performed on race cars or highly modified vehicles to gain a more 'connected' feel or to simplify plumbing, but it drastically increases pedal effort and is unsuitable for street use without significant re-engineering of the brake system. For most drivers, the function of a brake booster is simply too critical to abandon.
Ensure all connections are secure, especially the vacuum hose. A leak here is often the easiest fix for reduced braking power.
The primary consideration involves understanding that brake boosters are wear items. While durable, they are not eternal, and proactive checks can prevent sudden failures.
