What is a Brake Booster Assembly?

The brake booster assembly is a critical component that significantly reduces the physical effort required to apply the brakes. It utilizes vacuum or hydraulic assist to multiply the force you exert on the brake pedal, making braking smoother and more responsive. This mechanism is critical for driver safety and comfort.

  • Amplifies pedal force for easier braking.
  • Uses vacuum or hydraulic pressure for assistance.
  • Essential for responsive and safe stopping.
  • Connects pedal input to the master cylinder.

When you press the brake pedal, you are not directly pushing fluid; instead, you are actuating a valve within the booster. This valve then allows engine vacuum (in most gasoline vehicles) or hydraulic pressure (in some systems or specific applications like a 12v electric vacuum pump power brake booster) to act on a diaphragm. The diaphragm’s movement dramatically increases the force transmitted through the pushrod to the master cylinder, which then pressurizes the brake fluid to engage the brakes.

Core Components and Their Roles

A typical vacuum brake booster assembly consists of a housing, a diaphragm, a pushrod, and a control valve. The housing contains two chambers separated by the diaphragm. The control valve, actuated by the brake pedal, directs vacuum to one chamber while allowing atmospheric pressure into the other, creating a pressure differential. This differential pushes the diaphragm, which in turn moves the pushrod connected to the master cylinder brake motorcycle side or automotive equivalent.

Understanding this principle is fundamental to grasping how your vehicle achieves powerful braking with minimal physical input.

Inspect the brake booster assembly for any signs of fluid leaks or vacuum hose damage during routine maintenance. Compromised seals can lead to a spongy pedal feel and drastically reduced braking performance.

When Does a Brake Booster Fail?

Failure often manifests as a hard brake pedal that requires significantly more force to activate, or a spongy pedal feel. This can occur due to diaphragm rupture, internal seal leaks, or a malfunctioning control valve. A common indicator is a hissing sound when the brake pedal is pressed, suggesting a vacuum leak. In these scenarios, the driver must exert abnormal force, compromising their ability to stop quickly and safely. Our analysis indicates that such failures are often progressive, starting subtly before becoming severe.

Such precision is paramount for reliable operation.

→ Master Cylinder: How It Works & 5 Critical Issues

The brake booster assembly acts as a vital intermediary, translating driver intention into decisive braking action through amplified mechanical advantage.

Practical Application: Beyond Passenger Cars

While common in cars and trucks, the principle of brake assist is adapted across various vehicles. For instance, specialized setups like a go kart brake master cylinder might not use a booster, but larger utility vehicles or custom builds might incorporate electric brake booster vacuum pump systems, especially when engine vacuum is insufficient or unavailable. Enthusiasts restoring classic vehicles, such as a 1965 Mustang power brake booster, prioritize maintaining or upgrading this component for modern driving safety standards.

Even systems like surge brake master cylinders on trailers rely on mechanical force multiplication, though they operate differently from hydraulic boosters.

How the Brake Booster Assembly Works

The operation of a brake booster assembly hinges on a pressure differential created across a flexible diaphragm. In a typical setup using engine vacuum, one side of the diaphragm is constantly exposed to manifold vacuum (low pressure), while the other side is exposed to either atmospheric pressure or vacuum, controlled by the brake pedal linkage.

Vacuum-Assisted Braking Explained

When the brake pedal is at rest, both sides of the diaphragm are under vacuum, so there's no pressure differential and no assist. When you press the pedal, the control valve opens, exposing the "air" side of the diaphragm to atmospheric pressure while maintaining vacuum on the other. This pressure difference forces the diaphragm to move, pushing the rod that actuates the master cylinder. This direct force multiplication is the core function of the brake booster.

If your vehicle uses an electric brake booster vacuum pump, it generates vacuum independently, often for diesel engines or in applications where engine vacuum is unreliable or insufficient. The principle remains the same: creating a pressure differential to assist pedal force.

It is imperative to acknowledge that a properly functioning booster makes a remarkable difference in stopping power and requires far less physical strain.

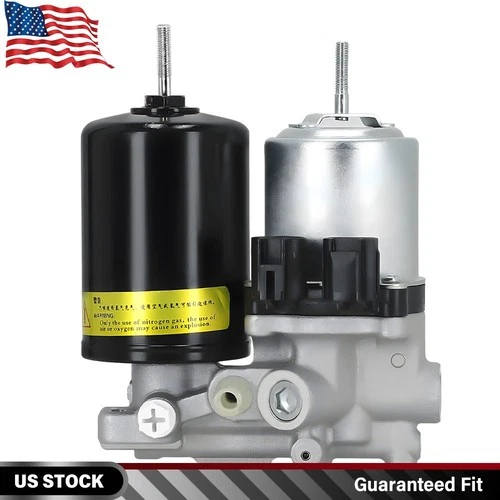

Hydraulic Brake Boosters

Hydraulic brake boosters use pressurized power steering fluid instead of vacuum. A hydraulic pump driven by the engine provides the necessary pressure. When you press the brake pedal, valves divert this high-pressure fluid to a chamber, creating a hydraulic force that assists the diaphragm and pushrod. These are common in some larger vehicles or performance applications where higher assist levels are desired.

→ Bad Brake Booster Symptoms: 5 Signs Your Car Needs Repair

What happens if the booster fails entirely?

A brake booster delete is sometimes performed on race vehicles or custom builds where extreme weight reduction or a different pedal feel is prioritized, but for street-driven vehicles, it dramatically increases pedal effort, making braking difficult and potentially unsafe under normal conditions.

Identifying a Malfunctioning Booster

Common symptoms include a stiff brake pedal, meaning you have to press much harder to stop. You might also notice the pedal slowly sinking to the floor while driving or a constant hissing noise from the engine bay, especially when the engine is running. Sometimes, pumping the brake pedal can briefly restore assist, but it quickly fades if there's a vacuum leak or diaphragm issue. A chrome brake booster and master cylinder combination might look good, but its function is paramount.

The primary consideration involves ensuring consistent and reliable assist.

Maintenance and Troubleshooting

Maintaining the brake booster assembly primarily involves ensuring the vacuum supply or hydraulic system is sound and that seals remain intact. For vacuum boosters, regular checks of vacuum hoses for cracks, leaks, or disconnection are vital. The check valve, often found at the booster's input, should also be inspected; if it fails, vacuum will not be retained.

Common Issues and Fixes

The most frequent issue is a loss of assist, leading to a hard pedal. This can stem from vacuum leaks (hoses, diaphragm, or seals), a faulty check valve, or an internal diaphragm rupture. If the hissing sound is present, focus on locating the leak in the vacuum line or the booster itself. Sometimes, a worn-out booster might still provide some assist, but it will feel significantly weaker than normal. If you're dealing with an older vehicle and suspect wear, a midland brake booster rebuild kit might offer a solution for specific models, though replacement is often more straightforward and reliable.

You must address any detected issues promptly.

→ 5 Critical Symptoms of a Bad Power Brake Booster

When replacing a brake booster, ensure the pushrod length is correctly set or that it matches the original specification. An improperly adjusted pushrod can prevent the master cylinder from returning fully, leading to dragging brakes or a pedal that doesn't return.

When to Replace vs. Rebuild

For most modern vehicles, replacing the entire brake booster assembly is the most common and often most cost-effective solution. Rebuilding kits are typically available for older or specialized applications. If the housing is cracked or severely corroded, replacement is the only option. Remember that the brake booster works in conjunction with the master cylinder; if the master cylinder shows signs of leakage or wear, it's often best practice to replace both components together for optimal braking performance and safety, especially if considering a polished chrome brake booster and master cylinder setup for aesthetics and function.

This mechanism is critical for preventing costly accidents.

Troubleshooting Summary

Problem: Hard Brake Pedal

  • Cause: Vacuum leak, faulty check valve, internal diaphragm failure, mechanical linkage issue.
  • Solution: Check vacuum lines, test check valve, inspect booster seals, verify pedal linkage. Replace booster if internal failure is confirmed.

Problem: Spongy Pedal

  • Cause: Air in the brake lines, failing master cylinder, or brake fluid leak.
  • Solution: Bleed brake system. Inspect master cylinder and brake lines for leaks. Replace master cylinder if necessary.

Problem: Hissing Sound

  • Cause: Vacuum leak in the booster or hoses.
  • Solution: Carefully check all vacuum connections and the booster housing for leaks. Replace damaged hoses or the booster.

Our analysis indicates that proactive maintenance dramatically extends the life of this vital safety system.
