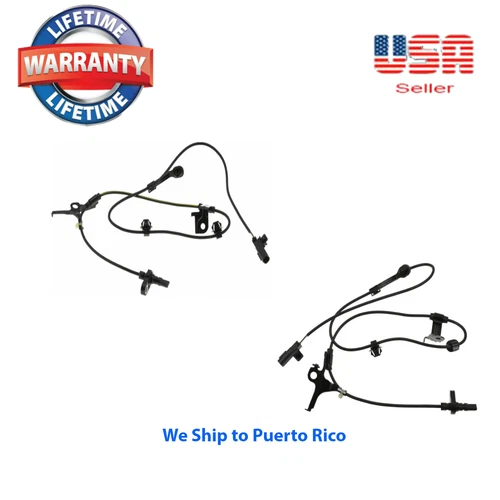

What is a Toyota Prius ABS Sensor?
The ABS sensor in your Toyota Prius is a critical component of the anti-lock braking system, precisely measuring the rotational speed of each wheel. This data allows the vehicle's computer to detect impending wheel lock-up during hard braking, preventing it to maintain steering control and reduce stopping distances.
- Monitors individual wheel speed for ABS.
- Prevents wheel lock-up during emergency stops.
- Essential for vehicle stability control.
- Data feeds directly to the ABS control module.
The Core Function of ABS Sensors
Understanding how your Prius's ABS system works begins with appreciating the role of its sensors. Each wheel is equipped with an ABS sensor, typically a magnetic pickup or Hall effect sensor, paired with a toothed or slotted reluctor ring mounted on the axle or hub. As the wheel rotates, the reluctor ring passes by the sensor, generating an electrical signal. The frequency of this signal directly corresponds to the wheel's speed. The ABS control module constantly analyzes these signals from all wheels.
Detecting Imminent Lock-Up
When you brake hard, the ABS module monitors for a sudden deceleration in one wheel compared to others, indicating it's about to lock up. If detected, the module rapidly pulses the brake fluid pressure to that specific wheel, releasing and re-applying the brake momentarily. This action prevents the wheel from locking, allowing you to maintain steering and better control the vehicle's trajectory. It is imperative to acknowledge that without accurate data from the ABS sensors, this sophisticated safety mechanism cannot function.
A malfunctioning ABS sensor can lead to the ABS warning light illuminating on your dashboard, often accompanied by the parking brake light. This indicates a loss of data from one or more wheels, disabling the ABS and potentially other stability control functions. Such precision is paramount for safe operation.
The ABS sensor is the eyes of your Prius's anti-lock braking system, feeding critical speed data to prevent skids.
Common Issues and Failure Symptoms
What happens when a Toyota Prius ABS sensor fails? Several symptoms can alert you to a problem. The most obvious is the illumination of the ABS warning light, and frequently, the related parking brake light or traction control light will also appear on the dashboard. This common occurrence, where the abs light and parking brake light on together, signifies a system fault detected by the car's computer.
Recognizing a Failing Sensor
Beyond dashboard lights, you might notice changes in braking performance. The ABS might engage unexpectedly, even during normal braking, causing a pulsing sensation in the brake pedal that feels abnormal. Conversely, the ABS might fail to activate at all during hard braking, leading to a skid or loss of steering control – a dangerous situation. In some instances, the speedometer may also become erratic or stop working altogether, as it often relies on the same wheel speed data. The integrity of the ABS sensor kabel is also a frequent point of failure, susceptible to damage from road debris or corrosion.
Inspect the ABS sensor kabel for visible damage or corrosion whenever you have the wheel off for other maintenance.
When the ABS Light Stays On
If your Prius displays an abs light and emergency brake light on, it's a clear signal that the ABS system is compromised. This is not a minor inconvenience; it means the anti-lock feature is offline. While your conventional braking will still work, you lose the critical safety net that prevents wheel lock-up. This is why addressing ABS sensor issues promptly is vital for your safety and the safety of others on the road.
Testing and Replacing ABS Sensors
When you suspect an issue with your Toyota Prius ABS sensor, the next steps involve diagnosis and potential replacement. Many DIY enthusiasts ask, how to test a abs sensor with a multimeter. This is a feasible method for initial diagnostics. Typically, you'll unplug the sensor and measure its resistance. A healthy sensor will show a specific resistance range (check your service manual for exact values), while an open circuit or a short indicates failure.
Diagnostic Procedures
Testing ABS sensors involves more than just a multimeter. A professional scan tool can read diagnostic trouble codes (DTCs) stored by the ABS module, often pointing directly to a specific sensor or circuit fault. This is crucial because sometimes the issue isn't the sensor itself but the wiring or the reluctor ring. For example, a dirty or damaged reluctor ring can cause erratic readings, mimicking a faulty sensor. Understanding this principle is fundamental.
Multimeter Testing Steps
- Locate the ABS sensor and its electrical connector.
- Disconnect the connector.
- Set your multimeter to measure resistance (Ohms).
- Connect the multimeter probes to the sensor's terminals.
- Compare the reading to the manufacturer's specifications.
If the resistance is out of spec, the sensor likely needs replacement. While a multimeter is useful for testing abs sensor with a multimeter, it doesn't always catch intermittent faults or issues with the sensor's signal output under load.
Always reset the ABS warning light after replacing a sensor using a compatible OBD-II scanner; the light may not clear on its own.
The Replacement Process
Replacing a bendix abs sensor or any brand sensor on a Toyota Prius is generally a straightforward process, but requires care. After confirming the faulty sensor (often identified by DTCs), you'll typically need to jack up the vehicle, remove the wheel, and locate the sensor. It's usually held in place by a single bolt or clip. Carefully remove the old sensor, ensuring not to damage the wheel hub or knuckle. Install the new sensor, ensuring it's seated correctly, and re-install the retaining bolt. Reconnect the wiring harness.
Considerations for Different Brands
While the basic function is the same, different manufacturers might offer sensors with varying connector types or mounting hardware. For instance, while we focus on the Prius, a general search for cable abs sensor bendix 15m relates to a specific type of cable often used in aftermarket applications, but for a Prius, you'll need a sensor specifically designed for your model year. High-performance systems, like a bosch motorsport abs system, would employ different sensor technologies and integration, but for a standard Prius, OEM or reputable aftermarket parts are recommended. If you're looking for abs system repair near me, a qualified mechanic can handle this replacement efficiently.
It is imperative to acknowledge that proper installation is crucial. A sensor that is not fully seated or is improperly wired can lead to repeat failures or continued warning lights.
