Understanding ABS Sensor Issues
When your anti-lock braking system (ABS) malfunctions, 'ABS sensor issues' are a primary suspect. These sensors, critical for detecting wheel speed, inform the ABS control module, preventing wheel lock-up during hard braking. Problems here directly impact safety and vehicle control.
- ABS sensors monitor wheel speed to prevent skidding.
- Faulty sensors disable the ABS, impacting braking performance.
- Common issues include damage, contamination, and electrical faults.
- Early diagnosis prevents more severe, costly repairs.
The ABS system relies on precise data from each wheel speed sensor to function correctly. If one or more sensors provide inaccurate readings or no reading at all, the ABS warning light will illuminate on your dashboard. This doesn't just mean a dashboard light is on; it signifies that the ABS is deactivated, and in a panic stop, your vehicle will behave more like a car without ABS, potentially leading to uncontrolled skids.
How ABS Sensors Work
Each wheel hub typically houses an ABS sensor, often a magnetic pickup or Hall effect sensor. This sensor works in conjunction with a toothed or slotted ring attached to the axle or wheel hub, known as the reluctor ring. As the wheel rotates, the reluctor ring passes by the sensor, generating an electrical pulse. The frequency of these pulses corresponds directly to the wheel's speed. The ABS control module interprets these pulses to gauge the speed of each individual wheel. Understanding this mechanism is fundamental to diagnosing why your abs system might be failing.
Common Causes of Failure
The most frequent reasons for 'abs sensor issues' stem from physical damage, environmental contamination, or electrical connection problems. The sensors are exposed to road debris, water, salt, and brake dust, which can degrade their performance or physically damage the sensor body or its connection to the vehicle. A damaged abs sensor kabel is a particularly common culprit, leading to intermittent or complete signal loss.
Diagnosing and Testing ABS Sensor Problems
When ABS warning lights illuminate, pinpointing the exact cause is crucial. The complexity ranges from simple visual checks to more involved electrical testing. Often, a mechanic will start by retrieving diagnostic trouble codes (DTCs) from the ABS module using an OBD-II scanner.
Reading Diagnostic Trouble Codes
Stored DTCs provide the first clues, often directly pointing to a specific wheel speed sensor circuit or the sensor itself. For instance, a 'C' code prefix usually indicates a chassis system fault, with the subsequent digits often specifying the circuit or sensor affected (e.g., C0020 might indicate a problem with the rear-left wheel speed sensor circuit). This targeted information is invaluable, guiding the technician toward the precise area needing inspection. If your abs light and parking brake light on simultaneously, it often points to a system-wide issue or a specific fault affecting both.
How to Test an ABS Sensor with a Multimeter
For DIY diagnosis or verification, testing abs sensor with a multimeter is an accessible method. You'll typically need to disconnect the sensor from its wiring harness. A magnetic ABS sensor usually has two wires. With the multimeter set to AC volts, you can spin the wheel (or the reluctor ring if removed) while monitoring the voltage output. A healthy sensor will generate a fluctuating AC voltage, increasing with speed. If you get no reading or a very weak, erratic signal, the sensor is likely faulty.
When checking the wiring, pay special attention to the point where the abs sensor kabel connects to the main vehicle harness. Corrosion, frayed wires, or loose connections here are frequent failure points that can mimic a bad sensor.
Understanding the interplay between sensor signals and the ABS module is key to effective troubleshooting.
Beyond multimeter tests, a mechanic might use an oscilloscope to analyze the sensor's signal waveform for more detailed diagnostics. This provides a visual representation of the signal's quality and consistency. Our analysis indicates that visual inspection of the reluctor ring for damage or debris is also a critical step often overlooked.
Repairing Common ABS Sensor Issues
Once 'abs sensor issues' are confirmed, repair often involves replacement, but sometimes a simpler fix is possible. The approach depends heavily on the root cause identified during diagnosis.
Replacing a Faulty ABS Sensor

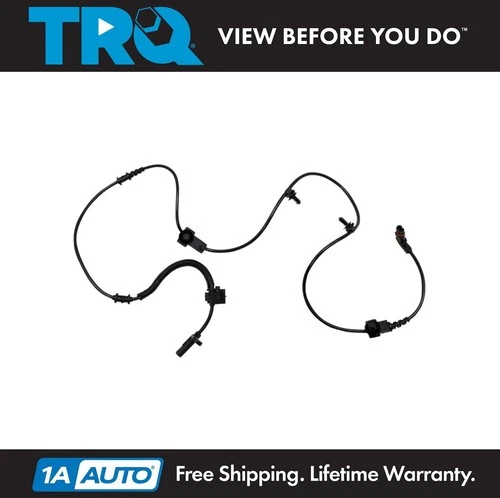

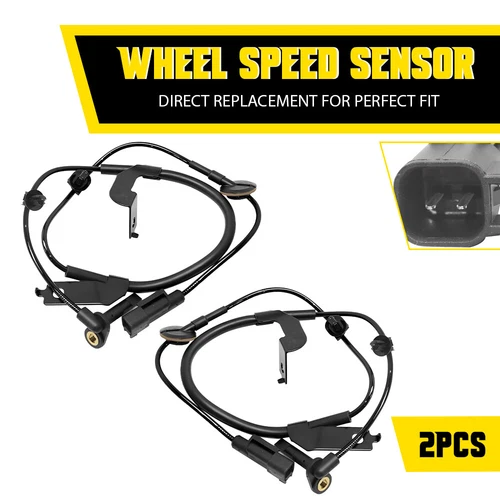

Replacing an ABS sensor is generally a straightforward process for many vehicles. It involves locating the sensor, typically mounted near the wheel hub and attached to the steering knuckle or brake dust shield. After disconnecting the electrical connector, the sensor is usually held in place by a single bolt. Once removed, the new sensor is installed, the bolt is tightened, and the connector is re-secured. This is a common repair for a 'bendix abs sensor' or a Bosch unit.
The reluctor ring should also be inspected for damage or contamination during this process. If the ring is dirty, cleaning it might resolve the issue. If it's bent or has missing teeth, it will need replacement, which is a more involved job. For specific parts, a 'cable abs sensor bendix 15m' might refer to an aftermarket extension cable, but typically the sensor is integrated with a fixed-length cable.
Before installing a new ABS sensor, apply a small amount of dielectric grease to the electrical connector terminals to help prevent moisture intrusion and corrosion, especially in humid or salty environments.
When to Seek Professional Help
While replacing a sensor can be DIY-friendly, complex issues might require professional intervention. If diagnostic codes point to the ABS control module itself, or if multiple sensors are failing, it's wise to consult a specialist. Finding 'abs system repair near me' is recommended if you encounter persistent problems or are uncomfortable with the diagnostic steps. The 'abs light and emergency brake light on' can sometimes indicate a more integrated system fault that needs expert attention.
Proper repair ensures the integrity of your entire abs system, vital for safe driving. This precision is paramount for maintaining vehicle safety standards.
